Birds and Rings

Yamashina Institute for Ornithology

●Where do swallows that breed in Japan migrate　 to？		Color Marking on Herons and Egrets NEW
●Which migrant bird travels the longest distance　 annually？
●Which bird lives the longest？
●What is bird banding？
●The history of bird banding in Japan
●Bird banders
●What to do if you find a banded bird
●The bands
●The role of the banding centers
●Breeding grounds, stop-over points, wintering　 grounds
●The life spans of the birds
●How to obtain basic information about birds		Japanese Bird Banding Association The main purposes of JBBA are to promote the good management and development of Japanese bird banding activity and to contribute to ornithological research and conservation of wild birds.
●The role of bird banding as "environmental　 monitoring"
●Color markings of birds
●What to do if you find shorebirds
●Studies using satellite telemetry

Where do swallows that breed in Japan migrate to？

From ancient times, people have wondered about the seasonal migration　of birds. Why do all the birds that were here in summer disappear in winter? The famous Greek philosopher Aristotle thought that swallows hibernated inside hollow trees or underneath the ground. Even in recent years when the idea of migration has become widely accepted, people still wonder if those swallows that nest under a roof during the summer return to the same nest the following year. What route do they take? Questions like these are not easily answered. Bird banding, a research method of attaching leg bands to identify individual birds, helps look into these questions.
People in Philippines, Vietnam, Malaysia, Indonesia and other countries that are more than 2000 km apart from Japan have retrieved birds banded in Japan and have reported to us. They found "TOKYO JAPAN" inscribed on the metal leg bands and have written letters to inform us. From the identification number located on the band itself, we know where, when and by whom the bird was banded.

Recovery points of Barn Swallow banded during Summer in Japan.

●: Recovered in Fall.(Sep.- Nov.)

◆: Recovered in Winter.(Dec.- Feb.)

▲: Recovered in Spring.(Mar.- May)

Which migrant bird travels the longest distance annually？

How far do birds migrate? Of course it depends on the species, but among the long distance migrants some travel back and forth half-way around the world between their wintering grounds and birthplace. This fact was first made known through banding studies. A South Polar Skua (Catharacta maccormicki) banded in Antarctica that crossed the Equator and traveled all of 12,800 km was found off-shore in Hokkaido. At present this sea bird is the record holder for birds migrating the longest distance to Japan.

Which bird lives the longest？

In 1998, the body of a Laysan Albatross (Diomedea immutabilis) was found on the seashore at Tateyama, Chiba Pref., Japan. The leg band was so worn that the number was hard to read, but after having the band checked at the banding center in the United States, it was reported that the band had been attached to a bird born in Southeast Island, Hawaii in 1965. This bird had lived at least 33 years. Now that bands are made of strong metal that doesnﾕt corrode or wear out, birds living even longer may be found.

What is bird banding？

Bird banding is a research method used to acquire accurate information about bird movement and life span. A leg band with an individual number or symbol is attached and the bird is released; if it is found later the bird can be identified by this number.
This research method which started in Europe 100 years ago is now in wide use all over the world. Banding centers in various countries keep in touch and exchange information. The Ministry of the Environment has put Yamashina Institute for Ornithology in charge of bird banding. Bird observatories all over Japan, Yamashina Institute, university researchers, and volunteer banders carefully catch and band birds and then release them. Special permits are needed to capture birds for this purpose.

The bird is held safely like this so that it cannot move or struggle, and the band is applied with special pliers.

The history of bird banding in Japan

The Ministry of Agriculture and Commerce first conducted bird banding in Japan in 1924. During the first 20 years (until 1943 when it was interrupted because of the war) about 15,000 banded birds were recovered. In 1961 when banding was resumed, the Ministry of Agriculture and Forestry gave Yamashina Institute the authority to conduct banding. In 1972, the Environment Agency (the current Ministry of the Environment) took over the operation, yet Yamashina Institute continued to be in charge. Between 1961 and 2002, 3.5 million birds were banded and released, approximately 20,000 recovered. Recently about 180,000 birds are banded nationwide each year. Gradually the destinations and routes of migrating birds are becoming known.

Bird banders

People who are qualified to band birds are called banders. It is necessary for them to be able to distinguish various species and have the skills to catch and release birds without injuring them. Only after sufficient practice and taking part in banding classes held by Yamashina Institute can a person qualify as a bander. Authorized banders apply to the Ministry of the Environment for a permit to catch birds. Most of the people taking part in banding activities are these banding volunteers.

What to do if you find a banded bird

Recovering a banded bird gives us lots of valuable information: migration and way of life, the bird's life span, cause of death, etc.
If you catch a healthy bird, record all the letters, numbers, symbols on the band and then release the bird, band intact. If the bird is injured, get in touch with the nearest wildlife protection center. If the bird is dead, remove the band and send it with the recovery report to the banding center.

Name of finder

Address, Tel / Fax, e-mail

Leg band number, symbols, letters

Date found

Location

Species

Sex (male / female / unknown)

Age (adult / juvenile / unknown)

Condition when recovered: If alive, was the bird released with the band intact,
or taken to a wildlife protection center

If dead, what was the cause and how long ago？

<Forwarding Address>
Yamashina Institute for Ornithology
Bird Migration Research Center
115 Konoyama, Abiko, Chiba
ZIP Code 270-1145 Japan
Tel: 04-7182-1107 / Fax: 04-7182-4342
E-mail : BMRC@yamashina.or.jp

The success of banding studies relies greatly on the cooperation of people who find and recover banded birds. The data from banding survey is vital in giving us knowledge about bird ecology.

The bands

The bands are made of aluminum or other light-weight alloys. Each is inscribed with a different number. The present day bands, put out by the Ministry of the Environment, have KANKYOSHO, TOKYO JAPAN and a number. There are 16 different sizes running from little ones for Winter Wrens (Troglodytes troglodytes) and Fan-tailed Warblers (Cisticola juncidis) to large ones for Whooper Swans (Cygnus cygnus). The smallest weighs 0.04g which is only 0.44% of the Wrenﾕs total weight (9g).

The band of size number 10. This size is attached to large birds like Pintail Ducks (Anus acuta) and Carrion Crows (Corvus corone).

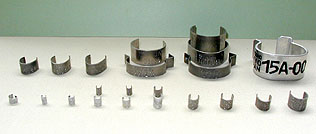

There are 16 types depending on leg size. The light colored ones are made of aluminum and the dark ones are made from nickel alloys and stainless steel.

The role of banding centers

When a bird is banded, the number, date and location, species, sex, age, bander's name are all recorded. This information is compiled at Yamashina Institute for Ornithology banding center and entered into the computer. When a banded bird is reported found, the center can refer to the band number and look up various information about the bird. Both the bander and the finder are informed. The center also exchanges information with overseas banding centers and compiles data on birds that migrate to and from our respective countries. It also prepares an annual report and distributes it to the Ministry of the Environment, cities and prefectures, banders and research organizations.
Another function of the banding center is to handle the banding process. The center holds banding lectures to train new banders and sends bander permit applications for the volunteer banders so they can catch birds. It also stores and lends out bands and mist nets. In recent years the center has also been putting effort into sharing our banding techniques with ornithologists in the other eastern and southeastern Asian countries to help them carry out their own banding activities.

the annual reports and the manuals of banding

Breeding grounds, stop-over points, wintering grounds

Many birds travel seasonally between their breeding grounds where they lay eggs and raise their young, to their wintering grounds where they spend the winter in a warmer climate. One purpose for studying this migration process is to look into the connections and routes between breeding grounds, wintering grounds, and stop-over points; knowing about these different habitats helps us protect the birds. For example, in order to protect swallows, we have to preserve not only their breeding grounds, but also the habitats in the other countries they migrate to.

The life spans of the birds

It is extremely difficult to determine the life spans of birds in the wild. But by recovering a banded bird and analyzing the data, we obtain important clues. Some birds are already adults when they are banded so we cannot determine their exact age, but the band is the proof that the bird lived at least that long. Among the 447 species banded during the 38 years between 1961 and 2002, 125 species were recovered more than 5 years after banding and release. The main species and their age are given below. As seen from this list, it is unusual for small birds to live more than 10 years; the longest living are large sea birds.

Longevity records of birds from banding studies in Japan
Species	Recorded Age
Short-tailed Albatross (Diomedea albatrus)	17yrs	7mos
Laysan Albatross (Diomedea immutabilis)	33	01
Streaked Shearwater (Calonectris leucomelas)	26	00
Great Frigatebird (Fregata minor)	18	06
Tundra Swan (Cygnus columbianus)	14	04
White-naped Crane (Grus vipio)	09	00
Black-tailed Gull (Larus crassirostris)	25	11
Oriental Turtle Dove (Streptopelia orientalis)	08	03
Ural Owl (Strix uralensis)	06	11
Barn Swallow (Hirundo rustica)	07	01
Bush Warbler (Cettia diphone)	09	00
Varied Tit (Parus varius)	10	07
Great Tit (Parus major)	07	05
Japanese White-eye (Zosterops japonicus)	06	11
Siberian Meadow Bunting (Emberiza cioides)	06	06
Tree Sparrow (Passer montanus)	07	02
Gray Starling (Sturnus cineraceus)	07	01
Carrion Crow (Corvus corone)	07	02

How to obtain basic information about birds

Banding studies are useful in obtaining accurate information on what birds live in a certain region. Sometimes identification that is difficult or impossible through observation is verified through the banding studies. By handling a live bird, we can also specify minute distinctions between different species and subspecies, ages and sexes. Other features like changes in plumage depending on age and sex, moulting condition (molt), accurate body measurements (biometrics), seasonal weight changes, and ectoparasites cannot be determined unless identified with the bird in hand. Information about survival and return rates, dispersal of young, age at first breeding, pair bonding, and family structure all help us know more about bird life.

The role of bird banding as "environmental monitoring"

With changes in the environment, the bird distribution, population, and breeding conditions in the area are affected. In recent years, data from banding studies is in wide use worldwide for environmental monitoring. Studies based on several hundred research stations in the United States and Europe have been going on since the 80's. In Japan, too, a number of long-term regional studies begun in the 70's are still being conducted. For example, a study made at Mt. Otayama, Fukui Pref. showed that after the environmental changes due to deforestation in the early 80's, there was a big change in the composition of bird species. Also from a study that started in '73 in Lake Yamanaka area near Mt. Fuji, we know the number of summer migrants during the breeding season has been decreasing since 1989. Banding studies have even more potential in the future. For instance, data from long distance migrants should help us make speculations on global environmental changes.

Numbers of Birds and Species Banded at Otayama (1973-1996)

Color markings of birds

Metal leg bands have one negative feature: in order to read the small number on the band, the bird has to be recaptured. There is another method of marking where researchers can identify the birds from a significant distance using binoculars and scopes. This has the advantage of enabling them to continue observing and keeping track of the same bird without catching it. The Ministry of the Environment implements the use of different colored plastic bands inscribed with letters and numbers (on their neck and legs) for swans, geese and cranes. Colored plastic flags are used for shorebirds. The observed data are the key to obtain the migration route between breeding grounds, stop-over points and wintering grounds as well as behavior like mate pairings and family structure. If you see any birds with color markings, please report to the Ministry of the Environment or Yamashina Institute for Ornithology.

Species	Country	Color	CODE (*=number)	Part of body
Whooper Swan (Cygnus cygnus)	Japan	Green	C*	Neck and leg
Tundra Swan (Cygnus columbianus)	Japan	Green	***Y	Neck and leg
Tundra Swan (Cygnus columbianus)	Russia	Red	***C	Neck and leg
Mute Swan (Cygnus olor)	Japan	Green	JK**	Neck and leg
White-fronted Goose (Anser albifrons)	Japan	Blue	**Y	Neck and leg
Bean Goose (Anser fabalis)	Japan	Yellow	A**	Neck and leg
White-naped Crane (Grus vipio)	Japan	Yellow	J, M	Leg (above the joint)
White-naped Crane (Grus vipio)	China	Red	***	Leg (above the joint)
White-naped Crane (Grus vipio)	Russia	White	A, E	Leg (above the joint)
Hooded Crane (Grus monacha)	Japan	Yellow	J, K, P**	Leg (above the joint)
Hooded Crane (Grus monacha)	Japan	Orange	**	Leg (above the joint)
Hooded Crane (Grus monacha)	Russia	White	A**	Leg (above the joint)
Saunders’s Gull (Larus saundersi)	China	Red, Green, Blue	**	Leg
Saunders’s Gull (Larus saundersi)	Japan	Yellow	**	Leg
Saunders’s Gull (Larus saundersi)	Korea	White	**	Leg
Shorebird	East Asia　 /Australasia	Blue, etc	None	Leg (above, below joint)

*	(Color and position of flag of shorebird differs with country and location of release.)

Whooper Swan banded in Japan. Neck band and green leg band.

Bar-tailed Godwit with a flag attached in Australia

　

What to do if you find shorebirds

In 1991 researchers started attaching plastic flags along with metal leg bands to shorebirds. A different color or leg position is designated for each banding station, so when a bird is spotted, we would know immediately where it was banded. Each year several hundred reports are sent in from inside and outside Japan.
As a result of this method, we now know that among different species of shorebirds that breed in the Arctic Circle and stop over in Japan, Rutous-necked Stints (Calidris ruficollis), Great Knots (Calidris tenuirostris), Sanderlings (Crocethia alba), Broad-billed Sandpipers (Limicola falcinellus), Trustiness (Arenaria interpres), Far Eastern Curlews (Numenius madagascariensis), and Whimbrels (Numenius phaeopus) winter in Australia, and Bar-tailed Godwits (Chimosa lapponica) winter in both Australia and New Zealand. Facts like these have an important role in protecting the habitat of shorebirds which migrate on a world-wide scale.

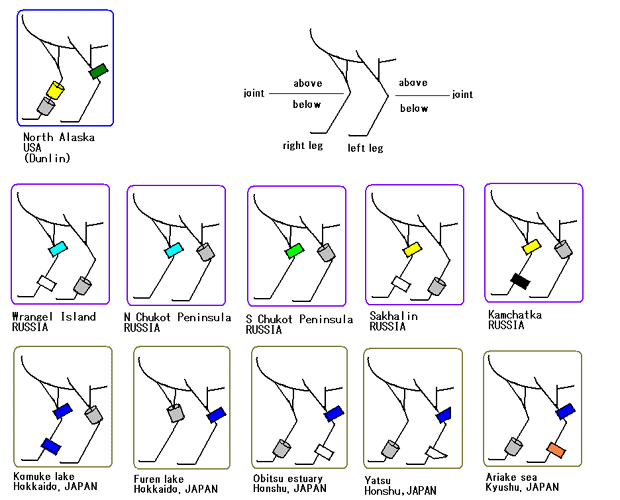

Different combinations of flags for each banding site

Anyone who spots a shorebird with a flag or other color markings, please send in the following information to the address below:

Name of observer

Address, Tel / Fax, e-mail

Date of spotting

Location

Latitude, longitude (if possible)

Species

Sex (male / female / unknown)

Age (adult / juvenile / unknown)

Plumage (summer, winter, intermediary)

Kinds of bands (metal ring, flag or colored ring)

Position of bands (right or left leg):
above the joint (type of marker / color)
below the joint (type of marker / color)

Picture enclosed (yes/no)

Information about site where spotted (other shorebirds, species and number)

<Forwarding Address>

Contact: Shigeta Yoshimitsu
Yamashina Institute for Ornithology
Bird Migration Research Center
115 Konoyama, Abiko, Chiba
ZIP Code 270-1145 Japan
Tel: 04-7182-1107 / Fax: 04-7182-4342
Email: shorebirds@nifty.com

Studies using satellite telemetry

Satellites are used to study the long-distance migrations of animals like sea-turtles, whales and large land mammals. The transmitter on the animal's body sends out radio signals; by using a satellite we can locate its position. In recent years, these transmitters have become much lighter, and they are also being utilized for bird species. Now we are able to follow the bird's route as it flies. Therefore, species like the Short-tailed Albatrosses (Diomedea albatrus) that breed in Japan and migrate to the Northern Pacific, the Streaked Shearwaters (Calonectris leucomelas) that migrate to the southern hemisphere, the Steller's Sea Eagles (Haliaeetus pelagicus) that breed in Siberia and winter in Japan and many species of swans that breed in the Arctic Circle and winter in Japan are all being studied through this system.

The satellite NOAA receives radio signals from the transmitter attached to the back of a Short-tailed Albatross and transmits the information to receiving stations. The information is processed at ARGOS information processing center in France and Japan and computerized to locate the bird on the map. The bird's flight path is shown below.
